S-B, S-BS

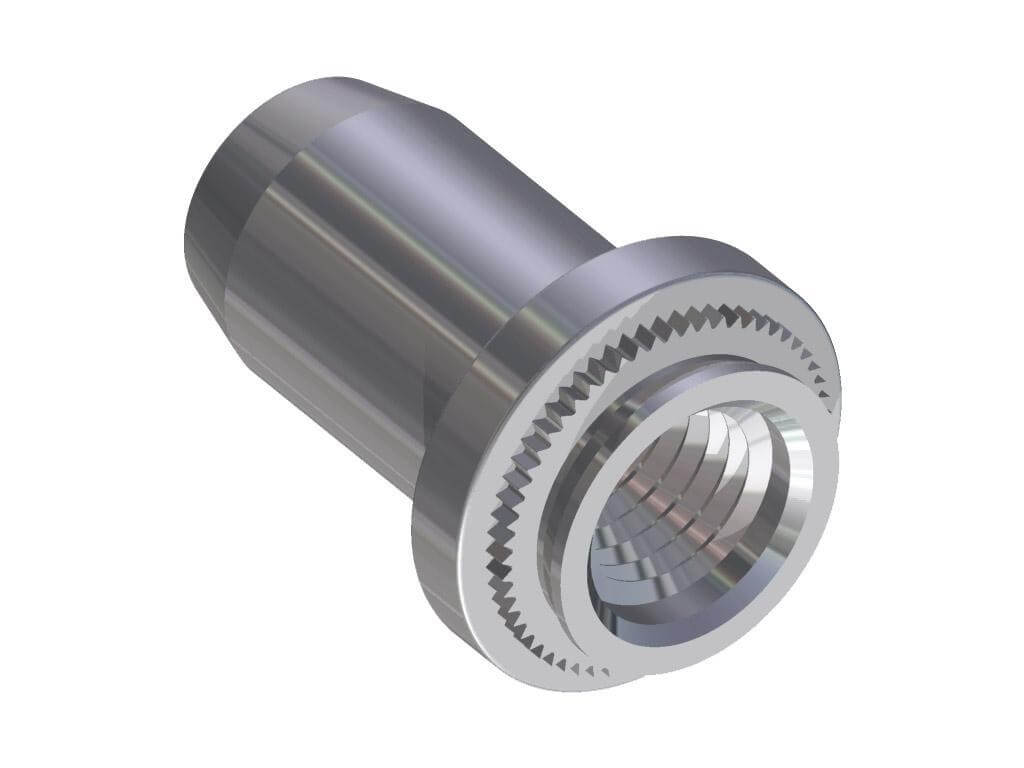

Uzavretá lisovacia matica.
S-B – oceľ pozinkovaná
S-BS – nerez serie 300

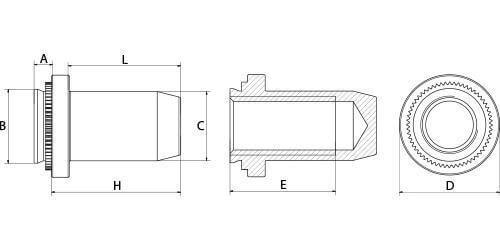

Značenie rozmerov:
S min – minimálna hrúbka plechu
d – priemer otvoru
m – minimálna vzdialenosť od stredu otvoru k okraju plechu
| Závit | B max | D ±0,25 | A max | H ±0,25 | C max | E min | L max | S min | d +0,08/-0 | m | S-B Oceľ | S-BS Nerez ser. 300 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M3-1 | 4.2 | 6.35 | 0.97 | 9.6 | 3.84 | 5.3 | 8.5 | 1 | 4.22 | 4.8 | 6211900301 | 6221900301 |
| M3-2 | 1.38 | 1.4 | 6211900302 | 6221900302 | ||||||||
| M4-1 | 5.38 | 7.95 | 0.97 | 11.2 | 5.2 | 7.1 | 9.8 | 1 | 5.41 | 6.9 | 6211900401 | 6221900401 |
| M4-2 | 1.38 | 1.4 | 6211900402 | 6221900402 | ||||||||
| M5-1 | 6.33 | 8.75 | 0.97 | 11.2 | 6.02 | 7.1 | 9.8 | 1 | 6.35 | 7.1 | 6211900501 | 6221900501 |
| M5-2 | 1.38 | 1.4 | 6211900502 | 6221900502 | ||||||||
| M6-1 | 8.73 | 11.1 | 1.38 | 14.3 | 7.8 | 7.8 | 12.7 | 1.4 | 8.75 | 8.6 | 6211900601 | 6221900601 |
| M6-2 | 2.21 | 2.29 | 6211900602 | 6221900602 |
