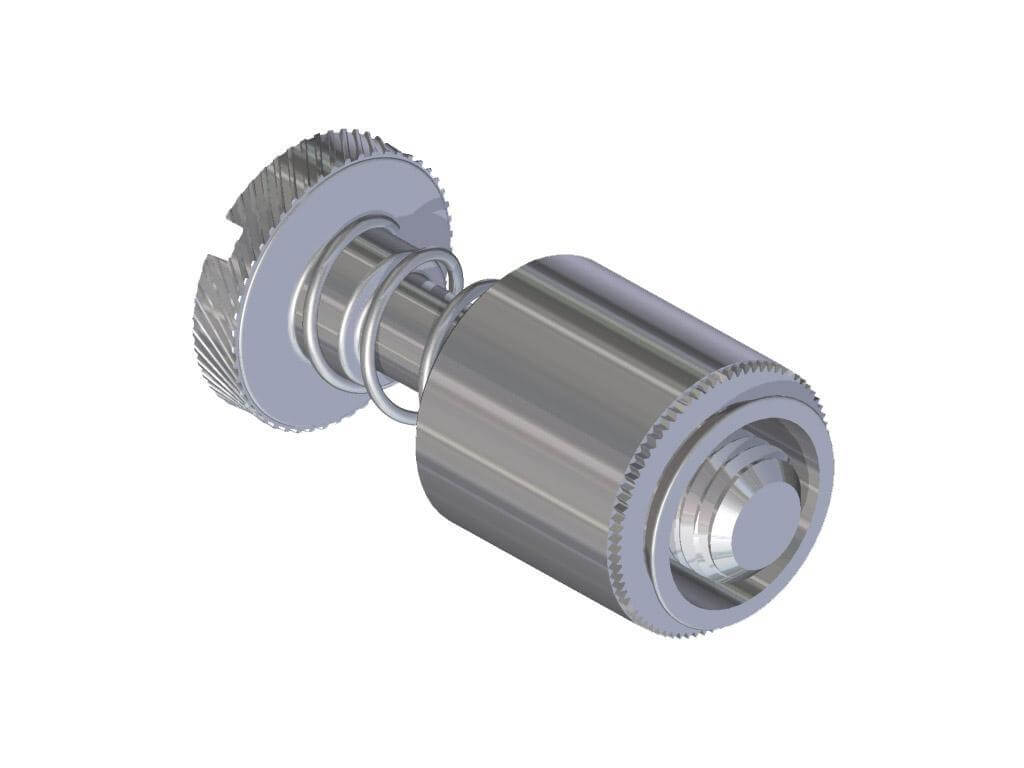

S-PFS2, S-PFC2
Nestratiteľná skrutka.
S-PFS2 – oceľ pozinkovaná
S-PFC2 – nerez serie 300

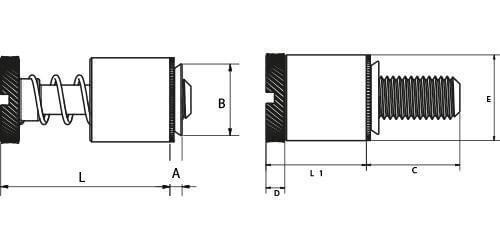

Značenie rozmerov:
S min – minimálna hrúbka plechu
d – priemer otvoru
m – minimálna vzdialenosť od stredu otvoru k okraju plechu
| Závit | Kód skrutky | A max | B max | C ±0,4 | D ±0,13 | E ±0,25 | L nom | L1 max | S min | d +0,08/-0 | Projekcia skrutky | m | S-PFS2 Oceľ | S-PFC2 Nerez serie 300 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M3 | 40 | 1.53 | 6.71 | 6.4 | 1.83 | 7.92 | 13.72 | 9.14 | 1.53 | 6.73 | 0 | 6.35 | 6217303040 | 6227303040 |
| 62 | 9.5 | 3.2 | 6217303062 | 6227303062 | ||||||||||
| M4 | 50 | 1.53 | 7.9 | 7.9 | 2.08 | 9.53 | 17.53 | 11.43 | 1.53 | 7.9 | 0 | 7.87 | 6217304050 | 6227304050 |
| 72 | 11.1 | 3.2 | 6217304072 | 6227304072 | ||||||||||
| 94 | 14.3 | 6.4 | 6217304094 | 6227304094 | ||||||||||
| M5 | 50 | 1.53 | 8.72 | 7.9 | 2.08 | 10.31 | 17.53 | 11.47 | 1.53 | 8.74 | 0 | 8.63 | 6217305050 | 6227305050 |
| 72 | 11.1 | 3.2 | 6217305072 | 6227305072 | ||||||||||
| 94 | 14.3 | 6.4 | 6217305094 | 6227305094 | ||||||||||
| M6 | 60 | 1.53 | 10.47 | 9.5 | 2.46 | 11.89 | 22.35 | 14.73 | 1.53 | 10.49 | 0 | 9.65 | 6217306060 | 6227306060 |
| 82 | 12.7 | 3.2 | 6217306082 | 6227306082 | ||||||||||
| 4 | 15.9 | 6.4 | 6217306004 | 6227306004 |
