Al/St
Závitový svorník s pilovým závitom.
Špecifikácia

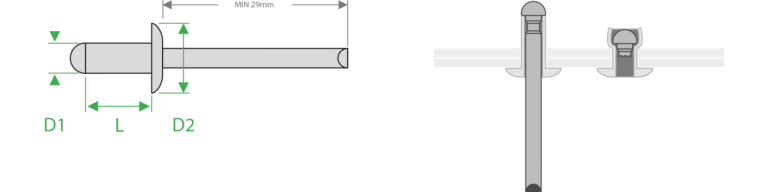

Trhací nit s veľkou hlavou hliníkový s oceľovým tŕňom.
| D1 [mm] | L [mm] | D2 [mm] | Rozsah [mm] | Tah [N] | Střih [N] | Otvor [mm] | Kód |
|---|---|---|---|---|---|---|---|
| 4,0 | 8 | 10,0 | 2,4 - 4,0 | 1 750 | 1 200 | 4,1 - 4,2 | 1010204008 |
| 10 | 5,0 - 6,5 | 1010204010 | |||||
| 12 | 7,0 - 8,5 | 1010204012 | |||||
| 14 | 8,0 - 10,5 | 1010204014 | |||||
| 16 | 10,0 - 12,5 | 1010204016 | |||||
| 20 | 13,0 - 16,5 | 1010204020 | |||||
| 4,8 | 8 | 14,0 | 2,5 - 4,0 | 2 600 | 1 850 | 4,9 - 5,0 | 1010204808 |
| 10 | 4,5 - 6,0 | 1010204810 | |||||
| 12 | 5,5 - 8,0 | 1010204812 | |||||
| 14 | 7,5 - 10,0 | 1010204814 | |||||
| 16 | 9,5 - 12,0 | 1010204816 | |||||
| 18 | 11,5 - 14,0 | 1010204818 | |||||
| 20 | 13,5 - 16,0 | 1010204820 | |||||
| 24 | 17,5 - 20,0 | 1010204824 | |||||
| 26 | 19,5 - 22,0 | 1010204826 | |||||
| 30 | 23,5 - 26,0 | 1010204830 | |||||
| 35 | 25,5 - 31,0 | 1010204835 | |||||
| 40 | 29,5 - 36,0 | 1010204840 | |||||
| 5,0 | 10 | 14,0 | 4,0 - 6,0 | 2 700 | 2 000 | 5,1 - 5,2 | 1010205010 |
| 12 | 6,0 - 8,0 | 1010205012 | |||||
| 14 | 7,0 - 10,0 | 1010205014 | |||||
| 16 | 9,0 - 12,0 | 1010205016 | |||||
| 18 | 11,0 - 14,0 | 1010205018 | |||||
| 20 | 13,0 - 16,0 | 1010205020 | |||||
| 25 | 16,0 - 21,0 | 1010205025 | |||||
| 30 | 21,0 - 26,0 | 1010205030 |
