Al/St
Hliníkový trhací nit s plochou hlavou a oceľovým tŕňom.

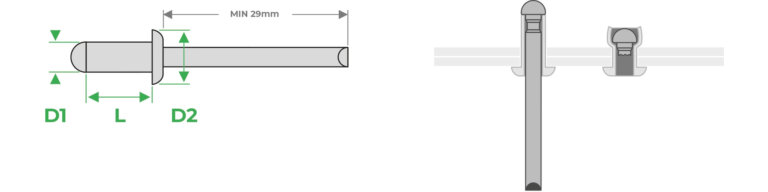

| D1 [mm] | L [mm] | D2 [mm] | Rozsah [mm] | Ťah [N] | Strih [N] | Otvor [mm] | Kód |
|---|---|---|---|---|---|---|---|
| 2.4 | 5 | 5 | 0,5 - 2,0 | 550 | 400 | 2,50 - 2,55 | 1010002405 |
| 6 | 1,0 - 3,0 | 1010002406 | |||||
| 7 | 2,5 - 4,5 | 1010002407 | |||||
| 8 | 4,0 - 6,0 | 1010002408 | |||||
| 10 | 6,0 - 8,0 | 1010002410 | |||||
| 12 | 8,0 - 10,0 | 1010002412 | |||||
| 3,0 | 5 | 6,5 | 0,5 - 2,0 | 950 | 600 | 3,1 - 3,2 | 1010003005 |
| 6 | 1,0 - 3,0 | 1010003006 | |||||
| 7 | 2,0 - 4,0 | 1010003007 | |||||
| 8 | 3,0 - 5,0 | 1010003008 | |||||
| 9 | 4,0 - 6,0 | 1010003009 | |||||
| 10 | 5,0 - 7,0 | 1010003010 | |||||
| 11 | 6,0 - 8,0 | 1010003011 | |||||
| 12 | 7,0 - 9,0 | 1010003012 | |||||
| 14 | 9,0 - 11,0 | 1010003014 | |||||
| 16 | 11,0 - 13,0 | 1010003016 | |||||
| 18 | 13,0 - 15,0 | 1010003018 | |||||
| 3,2 | 5 | 6,5 | 0,5 - 2,0 | 1 000 | 750 | 3,3 - 3,4 | 1010003205 |
| 6 | 1,0 - 3,0 | 1010003206 | |||||
| 7 | 2,0 - 4,0 | 1010003207 | |||||
| 8 | 3,0 - 5,0 | 1010003208 | |||||
| 9 | 4,0 - 6,0 | 1010003209 | |||||
| 10 | 5,0 - 7,0 | 1010003210 | |||||
| 11 | 6,0 - 8,0 | 1010003211 | |||||
| 12 | 7,0 - 9,0 | 1010003212 | |||||
| 14 | 9,0 - 11,0 | 1010003214 | |||||
| 16 | 11,0 - 13,0 | 1010003216 | |||||
| 18 | 13,0 - 15,0 | 1010003218 | |||||
| 20 | 14,0 - 17,0 | 1010003220 | |||||
| 3,4 | 5 | 7,0 | 0,5 - 2,0 | 1 250 | 900 | 3,5 - 3,6 | 1010003405 |
| 6 | 1,0 - 3,0 | 1010003406 | |||||
| 7 | 2,0 - 4,0 | 1010003407 | |||||
| 9 | 4,0 - 6,0 | 1010003409 | |||||
| 11 | 6,0 - 8,0 | 1010003411 | |||||
| 12 | 7,0 - 9,0 | 1010003412 | |||||
| 14 | 9,0 - 11,0 | 1010003414 | |||||
| 16 | 11,0 - 13,0 | 1010003416 | |||||
| 18 | 13,0 - 15,0 | 1010003418 | |||||
| 4,0 | 5 | 8,0 | 0,5 - 2,0 | 1 750 | 1 200 | 4,1 - 4,2 | 1010004005 |
| 6 | 1,0 - 2,5 | 1010004006 | |||||
| 7 | 2,0 - 3,5 | 1010004007 | |||||
| 8 | 3,0 - 4,5 | 1010004008 | |||||
| 9 | 4,0 - 5,5 | 1010004009 | |||||
| 10 | 5,0 - 6,5 | 1010004010 | |||||
| 11 | 6,0 - 7,5 | 1010004011 | |||||
| 12 | 7,0 - 8,5 | 1010004012 | |||||
| 14 | 8,0 - 10,5 | 1010004014 | |||||
| 16 | 10,0 - 12,5 | 1010004016 | |||||
| 18 | 12,0 - 14,5 | 1010004018 | |||||
| 20 | 14,0 - 16,5 | 1010004020 | |||||
| 22 | 16,0 - 18,5 | 1010004022 | |||||
| 24 | 18,0 - 20,5 | 1010004024 | |||||
| 26 | 20,0 - 22,5 | 1010004026 | |||||
| 28 | 22,0 - 24,5 | 1010004028 | |||||
| 30 | 24,0 - 26,5 | 1010004030 | |||||
| 35 | 27,0 - 31,5 | 1010004035 | |||||
| 4,8 | 6 | 9,5 | 0,5 - 2,0 | 2 600 | 1 850 | 4,9 - 5,0 | 1010004806 |
| 7 | 1,5 - 3,0 | 1010004807 | |||||
| 8 | 2,5 - 4,0 | 1010004808 | |||||
| 9 | 3,5 - 5,0 | 1010004809 | |||||
| 10 | 4,5 - 6,0 | 1010004810 | |||||
| 11 | 5,5 - 7,0 | 1010004811 | |||||
| 12 | 6,5 - 8,0 | 1010004812 | |||||
| 14 | 7,5 - 10,0 | 1010004814 | |||||
| 16 | 9,5 - 12,0 | 1010004816 | |||||
| 18 | 11,5 - 14,0 | 1010004818 | |||||
| 20 | 13,5 - 16,0 | 1010004820 | |||||
| 22 | 15,5 - 18,0 | 1010004822 | |||||
| 24 | 17,5 - 20,0 | 1010004824 | |||||
| 26 | 19,5 - 22,0 | 1010004826 | |||||
| 28 | 21,5 - 24,0 | 1010004828 | |||||
| 30 | 23,5 - 26,0 | 1010004830 | |||||
| 35 | 25,5 - 31,0 | 1010004835 | |||||
| 40 | 30,5 - 36,0 | 1010004840 | |||||
| 45 | 35,5 - 40,0 | 1010004845 | |||||
| 50 | 39,5 - 45,0 | 1010004850 | |||||
| 5,0 | 6 | 9,5 | 0,5 - 2,0 | 2 700 | 2 000 | 5,1 - 5,2 | 1010005006 |
| 8 | 2,5 - 4,0 | 1010005008 | |||||
| 10 | 4,5 - 6,0 | 1010005010 | |||||
| 12 | 6,5 - 8,0 | 1010005012 | |||||
| 14 | 7,5 - 10,0 | 1010005014 | |||||
| 16 | 9,5 - 12,0 | 1010005016 | |||||
| 18 | 11,5 - 14,0 | 1010005018 | |||||
| 20 | 13,5 - 16,0 | 1010005020 | |||||
| 22 | 15,5 - 18,0 | 1010005022 | |||||
| 24 | 17,5 - 20,0 | 1010005024 | |||||
| 26 | 19,5 - 22,0 | 1010005026 | |||||
| 28 | 21,5 - 24,0 | 1010005028 | |||||
| 30 | 23,5 - 26,0 | 1010005030 | |||||
| 6,0 | 8 | 12,0 | 1,0 - 3,0 | 4 400 | 2 800 | 6,1 - 6,3 | 1010006008 |
| 10 | 2,5 - 5,0 | 1010006010 | |||||
| 12 | 4,5 - 7,0 | 1010006012 | |||||
| 14 | 5,5 - 9,0 | 1010006014 | |||||
| 16 | 6,5 - 10,0 | 1010006016 | |||||
| 18 | 9,5 - 13,0 | 1010006018 | |||||
| 20 | 11,0 - 14,0 | 1010006020 | |||||
| 22 | 12,5 - 17,0 | 1010006022 | |||||
| 26 | 16,5 - 21,0 | 1010006026 | |||||
| 30 | 20,5 - 25,0 | 1010006030 | |||||
| 35 | 24,5 - 30,0 | 1010006035 | |||||
| 40 | 29,5 - 35,0 | 1010006040 | |||||
| 6,4 | 10 | 13,0 | 2,0 - 5,0 | 4 950 | 3 200 | 6,5 - 6,7 | 1010006410 |
| 12 | 4,0 - 7,0 | 1010006412 | |||||
| 16 | 6,5 - 10,0 | 1010006416 | |||||
| 18 | 9,5 - 13,0 | 1010006418 | |||||
| 22 | 12,5 - 17,0 | 1010006422 | |||||
| 26 | 16,5 - 21,0 | 1010006426 | |||||
| 30 | 20,5 - 25,0 | 1010006430 | |||||
| 35 | 24,5 - 30,0 | 1010006435 | |||||
| 40 | 29,5 - 35,0 | 1010006440 | |||||
| 7,8 | 15 | 16,0 | 4,0 - 9,0 | 6 500 | 5 250 | 7,9 - 8,1 | 1010007815 |
| 18 | 9,5 - 13,0 | 1010007818 | |||||
| 22 | 12,5 - 17,0 | 1010007822 | |||||
| 26 | 16,5 - 21,0 | 1010007826 | |||||
| 30 | 20,5 - 25,0 | 1010007830 | |||||
| 35 | 24,5 - 30,0 | 1010007835 |
