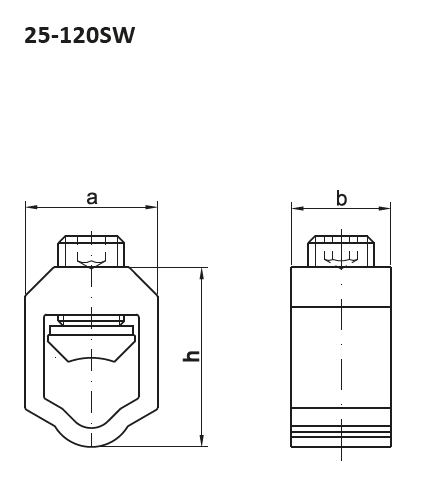

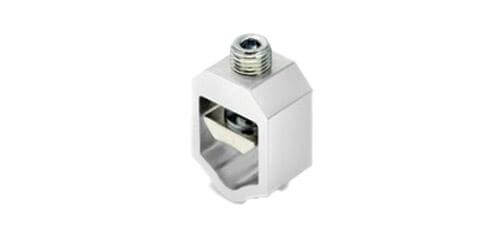

Skrutková svorka
sm – viacžilový sektorový drôt (flexi)
se – sektorová žila plná (pevná)
rm – guľatá žila (flexi)
re – žila plná (pevná)
-
-
-
-
-
5+
| Detail | Priečny rez (mm²) | Prierez (mm²) | Krútiaci moment (Nm) | Rozmery | |||||
|---|---|---|---|---|---|---|---|---|---|
| sm | sa | rm | re | a | b | h | |||

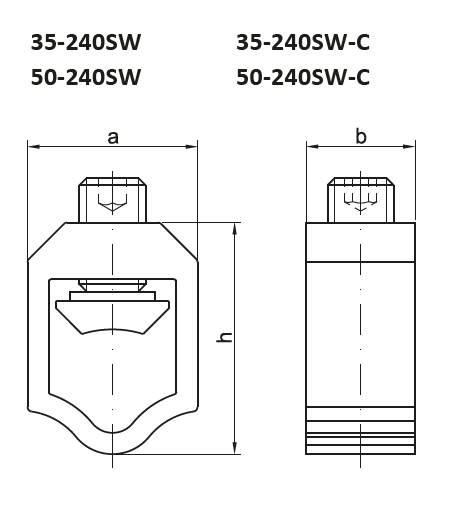

| 25-120SW | 25-120 | 25-120 | 16-95 | 16-95 | 95 | 20 | 28 | 18.5 | 38 |
| 35-240SW | 35-185 | 35-240 | 25-150 | 25-95 | 120 | 30 | 35 | 23 | 49 |
| 50-240SW | 50-185 | 50-240 | 35-95 | 35-120 | 120 | 30 | 35 | 23 | 49 |
| 70-300SW | 70-240 | 95-300 | 50-120 | 70-150 | 150 | 30 | 35 | 23 | 49 |
| 95-300SW | 70-240 | 95-300 | 50-185 | 70-240 | 150 | 30 | 37,5 | 23 | 54 |
| 25-120SW-B | 25-120 | 25-120 | 16-95 | 16-120 | 95 | 20 | 28 | 18.5 | 38 |
| 50-300SW-B | 50-240 | 50-300 | 35-240 | 35-240 | 150 | 35 | 35 | 23 | 49 |
| 95-300SW-B | 50-300 | 50-300 | 50-300 | 50-150 | 150 | 30 | 37.5 | 23 | 54 |
| 35-240SW-C | 35-240 | 35-240 | 35-95 | 35-120 | 150 | 40 | 35 | 23.2 | 49 |
| 50-240SW-C | 50-240 | 50-240 | 35-95 | 35-120 | 150 | 40 | 35 | 23.2 | 49 |
| 25-120SW | 35-240SW | 50-240SW | 70-240SW | 95-300SW | 25-120SW-B | 50-300SW-B | 95-300SW-B | 35-240SW-C | 50-240SW-C |
|---|---|---|---|---|---|---|---|---|---|
| Svorka | Cínovaná mosadz | Pružná pozinkovaná oceľ | Poniklovaný zinok a zliatina hliníka | ||||||
| Telo | Zliatina hliníka (AlMgSi) | ||||||||
| Skrutka | Pozinkovaná oceľ |
