Nízka lisovacia matica.
S-F – nerez serie 300

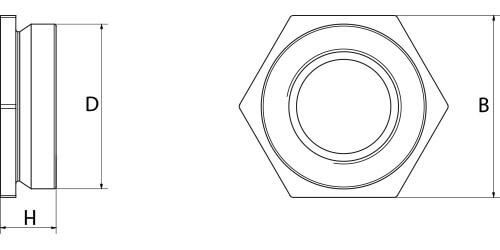

Značenie rozmerov:
S min – minimálna hrúbka plechu
d – priemer otvoru
m – minimálna vzdialenosť od stredu otvoru k okraju plechu
| Závit | D max | B±0,2 | H max | S min | d +0,08/-0 | m | S-F Nerez ser. 300 |
|---|---|---|---|---|---|---|---|
| M2-1 | 4.35 | 4.8 | 1.53 | 1,53 - 2,30 | 4.37 | 6 | 6221200201 |
| M2-2 | 2.3 | 2.32 | 6221200202 | ||||
| M2,5-1 | 4.35 | 4.8 | 1.53 | 1,53 - 2,30 | 4.37 | 6 | 6221200251 |
| M2,5-2 | 2.3 | 2.32 | 6221200252 | ||||
| M3-1 | 4.35 | 4.8 | 1.53 | 1,53 - 2,30 | 4.37 | 6 | 6221200301 |
| M3-2 | 2.3 | 2.32 | 6221200302 | ||||
| M3-1ALT | 5.35 | 6.4 | 1.53 | 1,53 - 2,30 | 5.4 | 6.5 | 6221200311 |
| M3-2ALT | 2.3 | 2.32 | 6221200312 | ||||
| M3,5-1 | 5.35 | 6.4 | 1.53 | 1,53 - 2,30 | 5.4 | 6.5 | 6221200351 |
| M3,5-2 | 2.3 | 2.32 | 6221200352 | ||||
| M4-1 | 7.35 | 7.9 | 1.53 | 1,53 - 2,30 | 7.37 | 7.2 | 6221200401 |
| M4-2 | 2.3 | 2.32 | 6221200402 | ||||
| M5-1 | 7.9 | 8.7 | 1.53 | 1,53 - 2,30 | 7.92 | 8.8 | 6221200501 |
| M5-2 | 2.3 | 2.32 | 6221200502 | ||||
| M6-3 | 8.72 | 9.5 | 3.05 | 3,18 - 3,94 | 8.74 | 8.8 | 6221200603 |
| M6-4 | 3.84 | 3,96 - 4,72 | 6221200604 | ||||
| M6-5 | 4.63 | 4.75 | 6221200605 |
