S-SL

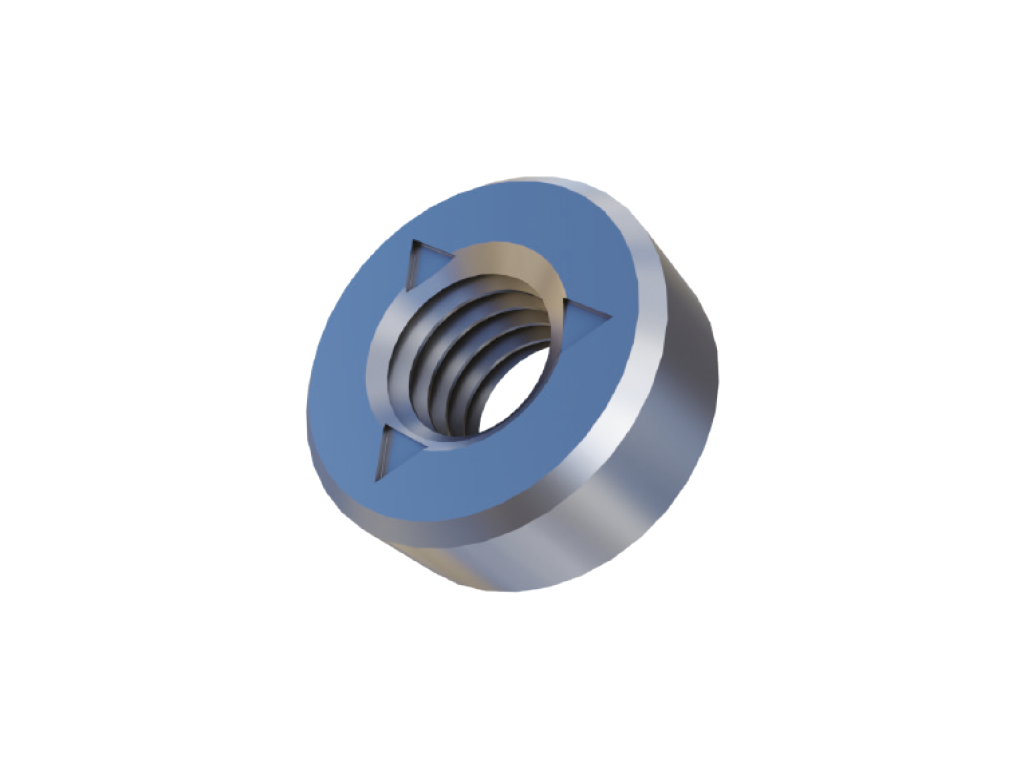

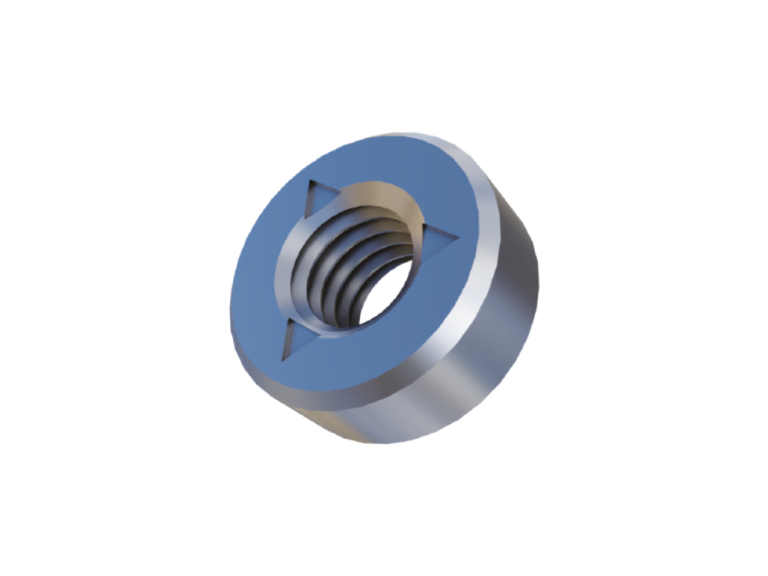

Lisovacia matica samoistná
S-SL – oceľ pozinkovaná

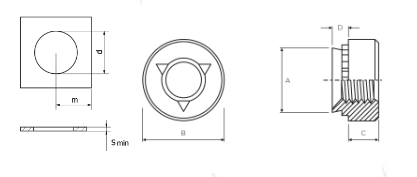

Označenie rozmerov:
S min – minimálna hrúbka plechu
d – priemer otvoru
m – minimálna vzdialenosť od stredu otvoru k okraju plechu
| Závit | A max | B | C max | D max | S min | d +0,08/-0 | m | S-SL Ocel |
|---|---|---|---|---|---|---|---|---|
| M3-1 | 4.2 | 6.35 | 1.5 | 0.98 | 1 | 4.22 | 4.8 | 6211100301 |
| M3-2 | 1.38 | 1.4 | 6211100302 | |||||
| M3,5-1 | 4.73 | 7.11 | 1.5 | 0.98 | 1 | 4.75 | 5.6 | 6211100351 |
| M3,5-2 | 1.38 | 1.4 | 6211100352 | |||||
| M4-1 | 5.38 | 7.87 | 2 | 0.98 | 1 | 5.41 | 6.9 | 6211100401 |
| M4-2 | 1.38 | 1.4 | 6211100402 | |||||
| M5-1 | 6.33 | 8.64 | 2 | 0.98 | 1 | 6.35 | 7.1 | 6211100501 |
| M5-2 | 1.38 | 1.4 | 6211100502 | |||||
| M6-1 | 8.73 | 11.18 | 4.08 | 1.38 | 1.4 | 8.75 | 8.6 | 6211100601 |
| M6-2 | 2.21 | 2.3 | 6211100602 | |||||
| M8-1 | 10.47 | 12.7 | 5.47 | 1.38 | 1.4 | 10.5 | 9.7 | 6211100801 |
| M8-2 | 2.21 | 2.3 | 6211100802 |
